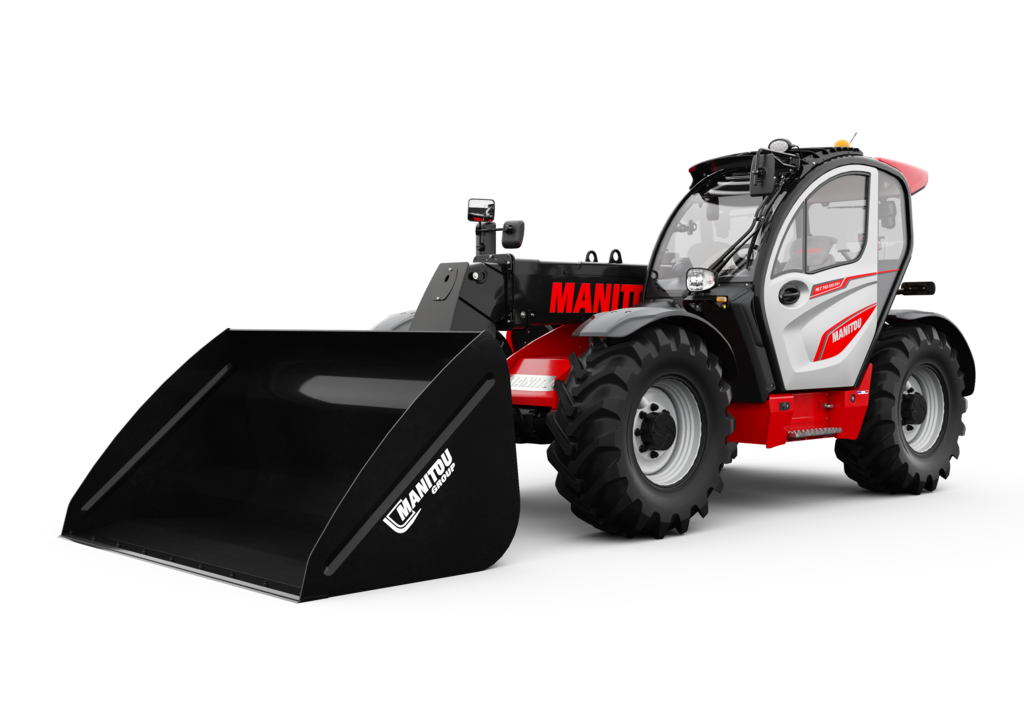

MLT 742-130 PS+ S1

Max. capacity: 4200 kg
Max. lifting height: 6.91 m
Max.outreach: 3.96 m
Reach at max. height: 1 m
Breakout force with bucket: 5748 daN

Unladen weight (with forks): 8120 kg
Ground clearance: 0.41 m
Wheelbase: 2.81 m
Overall length to carriage (with hitch): 5.02 m
Front overhang: 1.26 m
Overall width: 2.39 m
Overall cab width: 0.95 m
Overall height: 2.38 m
Tilt-down angle: 133 °
Tilt-up angle: 14 °
External turning radius (over tyres): 3.93 m
Standard tyres: Alliance – A580 – 460/70 R24 159A8
Drive wheels (front / rear): 2 / 2
Steering wheels (front / rear): 2 / 2

Lifting: 8.70 s
Lowering: 8.60 s
Extension: 6.90 s
Retraction: 6.10 s
Crowd: 3.60 s
Dump: 3.10 s

Engine brand: Deutz
Engine norm: Stage V
Engine model: TCD 3.6 L4
Number of cylinders – Capacity of cylinders: 4 – 3621 cm³
I.C. Engine power rating / Power (kW): 129 Hp / 95 kW
Max. torque / Engine rotation: 500 Nm @1600 rpm
Drawbar pull (Laden): 8000 daN
Reversible fan: Standard
Engine cooling system: 4 radiators (water + intercooler + hydraulic oil + transmission oil)

Transmission type: Torque Converter
Gearbox: Powershift
Number of gears (forward / reverse): 6 / 3
Max. travel speed (may vary according to applicable regulations): 40 km/h
Differential lock: Limited slip differential on front axle
Parking brake: Automatic negative parking brake
Service brake: Oil-immersed multi-discs braking on front & rear axles

Hydraulic pump type: Variable displacement pump
Hydraulic flow – Pressure: 150 l/min – 270 Bar
Flow sharing distributor: Standard

Hydraulic oil: 135 l
Fuel tank: 120 l
Diesel Exhaust fluid (AdBlue® type): 10 l

Noise at driving position (LpA) tested following NF EN 12053 norm: 72 dB
Environmental noise (LwA): 105 dB
Vibration to whole hand/arm: < 2.50 m/s²

Tractor homologation: Tractor homologation
Safety cab homologation: ROPS – FOPS cab (level 2)
Controls: JSM
