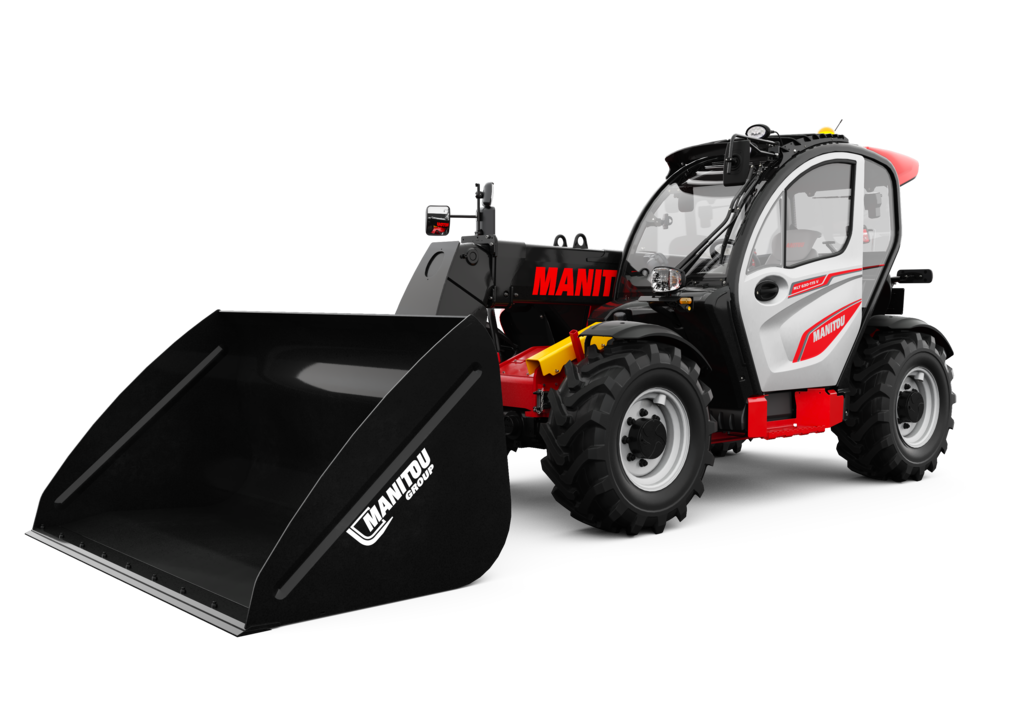

Manitou

MLT 630-115 V

Overview

3000 kg
6.10 m
3.34 m
M-Varioshift

Full Specification

Max. capacity: 3000 kg
Max. lifting height: 6.10 m
Max. outreach: 3.34 m
Reach at max. height: 0.90 m
Breakout force with bucket: 4914 daN

Unladen weight (with forks): 6960 kg
Ground clearance: 0.39 m
Wheelbase: 2.69 m
Overall length to carriage (with hitch): 4.78 m
Front overhang: 1.25 m
Overall width: 2.13 m
Overall cab width: 0.95 m
Overall height: 2.34 m
Tilt-down angle: 133 °
Tilt-up angle: 13 °
External turning radius (over tyres): 3.68 m
Standard tyres: Alliance – A580 – 405/70 R24 152A8
Drive wheels (front / rear): 2 / 2
Steering wheels (front / rear): 2 / 2

Lifting: 6.50 s
Lowering: 4.90 s
Extension: 5.80 s
Retraction: 5.30 s
Crowd: 3.20 s
Dump: 2.60 s

Engine brand: Deutz
Engine norm: Stage V
Engine model: TCD 3.6 L4
Number of cylindersCapacity of cylinders: 4 – 3621 cm³
I.C. Engine power rating / Power (kW): 116 Hp / 85 kW
Max. torque / Engine rotation: 460 Nm @1600 rpm
Drawbar pull (Laden): 6500 daN
Reversible fan: Standard
Engine cooling system: 4 radiators (water + intercooler + oil + fuel)

Transmission type: M-Varioshift
Number of gears (forward / reverse): 2 / 2
Max. travel speed (may vary according to applicable regulations): 40 km/h
Differential lock: Limited slip differential on front axle
Parking brake: Manual
Service brake: Oil-Immersed multi-discs braking on front axles

Hydraulic pump type: Gear pump
Hydraulic flowPressure: 106 l/min – 250 Bar
Flow sharing distributor: Option

Hydraulic oil: 94 l
Fuel tank: 78 l
Diesel Exhaust fluid (AdBlue® type): 13 l

Noise at driving position (LpA) tested following NF EN 12053 norm: 73 dB
Environmental noise (LwA): 106 dB
Vibration to whole hand/arm: < 2.50 m/s²

Tractor homologation: Tractor homologation
Safety cab homologation: ROPS – FOPS cab (level 2)
Controls: JSM
