Manitou

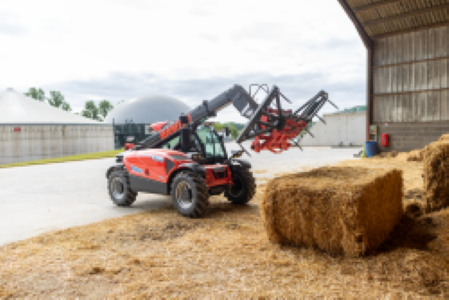

MLT 625-75 H

The MLT 625-75 H is an extremely compact machine. Specifically designed for agricultural applications, it will prove to be an asset on your farm for tackling everyday handling demands. Its compact dimensions guarantee unmatched manoeuvrability for access to smaller buildings and tight areas.

Overview

Max. capacity: 2500 kgs
Max. lifting height: 5.90 m
Max. outreach: 3.30 m
Transmission type: Hydrostatic

Comfort

The comfort of the driver’s cab, full 360° visibility and JSM (Joystick, Switch & Move) control are just some of the elements that make working days safer and less exhausting. The Easy Connect System (ECS) makes changing boom tip attachments easy and the sheer number available offers you with the flexibility your farm needs. Hydraulic movements are precise and smooth and 4 driven and steered wheels combined with 4 steering modes enhance unit flexibility, irrespective of the situation.

Full Specification

Max. capacity: 2500 kg
Max. lifting height: 5.90 m
Max. outreach: 3.30 m
Reach at max. height: 0.50 m
Breakout force with bucket: 4205 daN

Unladen weight (with forks): 4922 kg
Ground clearance: 0.38 m
Wheelbase: 2.30 m
Overall length to carriage (with hitch): 3.90 m
Front overhang: 0.99 m
Overall width: 1.81 m
Overall cab width: 0.80 m
Overall height: 2 m
Tilt-down angle: 117 °
Tilt-up angle: 12 °
External turning radius (over tyres): 3.31 m
Standard tyres: Alliance – A580 – 300/75 R18 142A8
Drive wheels (front / rear): 2 / 2
Steering wheels (front / rear): 2 / 2

Lifting: 7.30 s
Lowering: 4.95 s
Extension: 5.20 s
Retraction: 3.70 s
Crowd: 3.20 s
Dump: 3.20 s

Engine brand: Kubota
Engine norm: Stage V
Engine model: V3307-CR-T-E5B
Number of cylinders – Capacity of cylinders: 4 – 3331 cm³
I.C. Engine power ratingPower (kW): 75 Hp / 55.40 kW
Max. torque / Engine rotation: 265 Nm @1400 rpm
Drawbar pull (Laden): 3240 daN
Reversible fan: Standard
Engine cooling system: 2 radiators water + hydraulic oil

Transmission type: Hydrostatic
Number of gears (forward / reverse): 2 / 2
Max. travel speed (may vary according to applicable regulations): 25 km/h
Differential lock: Limited slip differential on front axle
Parking brake: Automatic negative parking brake
Service brake: Oil-Immersed multi-discs braking on front axles

Hydraulic pump type: Gear pump
Hydraulic flowPressure: 86 l/min – 235 bar

Hydraulic oil: 115 l
Fuel tank: 63 l

Noise at driving position (LpA) tested following NF EN 12053 norm: 76 dB(A)
Environmental noise (LwA): 104 dB(A)
Vibration to whole hand/arm: < 2.50 m/s²

Tractor homologation:
Safety cab homologation: ROPS – FOPS cab (level 1)
Controls: JSM
